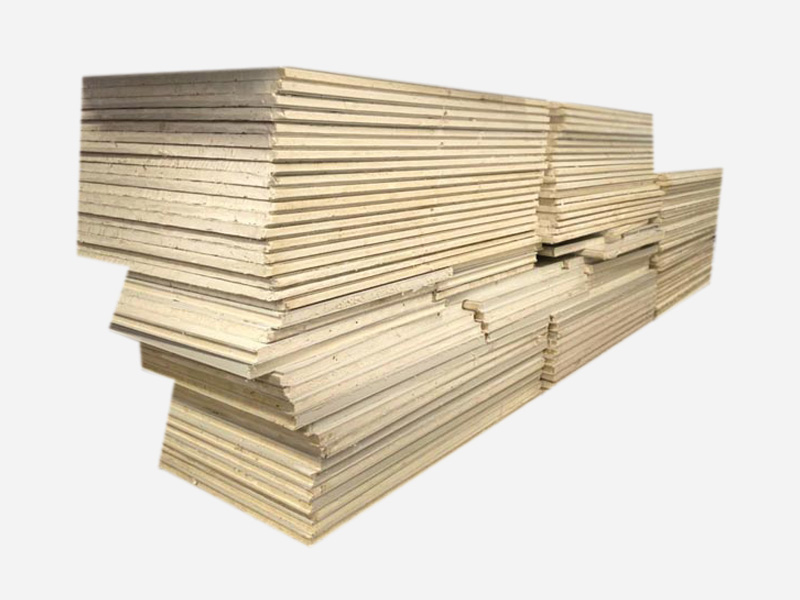

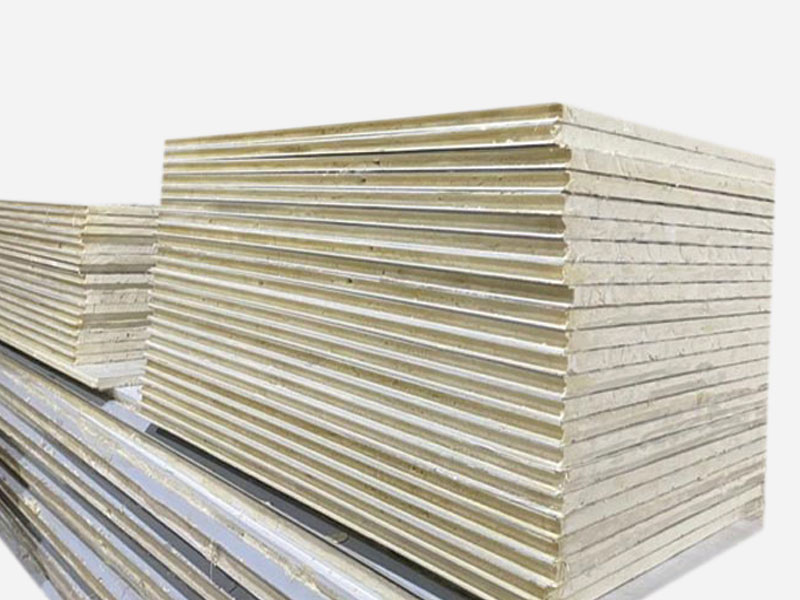

The Panels come with Tongue & Grove joints and specially designed Cam locks to enhance airtight assembly. They are also available with pre coated GI sheets, SS sheets or as directed and in various sizes and thicknesses ranging from 30 mm to 150 mm. These panels are ready to assemble for cold storage, Clean Room , shelters, building sheds, etc
| Type of Panel Joints | : | Tongue and Groove / Cam Locks |
|---|---|---|
| Type of Panel Joints | : | Tongue and Groove / Cam Locks |
| Density | : | 40 kgs +/-2 per cub mtr . |
| Panel Lamination | : | PPGI / SS / Cement Board |
| Thickness | : | From 0.3 mm upto 1 mm or as per customer requirement |
| Color | : | Standard RAL 9002 / RAL 9001 |
| Loading bearing capacity | : | 150 kg/sqmtr |
| Length | : | Upto 9 mts |
| Thickness | : | 30mm to 150 mm |
| Ribs on panels | : | Can be provided |
| Insulation | : | CFC Free |
| Closed Cell contents | : | 90 – 95% |
| Water absorption | : | 0.2% volume @ 100% RH |
| Thermal Conductivity | : | 0.023 – W/m.k |
